What should you check for before diagnosing an electrical circuit problem in Engine Cooling Fan systems on Mitsubishi Galant?

Always check for blown fuses before a circuit diagnostic procedure. The models from 1994 to 1998 feature both high and low-speed cooling fan relays. However, from 1999 onwards, there is only one cooling fan relay that the PCM controls. Condensers mounted alongside the engine cooling fan for 1994 to 1998 models and 3.0L V6 models with A/C. From 1999 onward, 2.4L SOHC models with AIC controller have single cooling fan and module. If the fan motor does not operate, replace it. Unplug the fan motor electrical connector if the engine overheats, and the cooling fan will not operate, connect the fan motor electrical connector direct to battery using fused jumper wires. In the case of air conditioned models, also check the condenser fan motor if the radiator fan motor checks out. If the motor for the radiator fan is functional yet doesn't turn on as the engine heats up, the fan relay has likely failed. The best way to check the control circuits is at a repair shop. Find the fan relays in the engine compartment fuse/relay box and carry out a relay test. If the relay is working properly, have a look at the wiring and any connections to the fan motor. If everything appears to be OK, then the fault lies with the engine coolant temperature sensor or the PCM. However, this will require a diagnosis. In order to replace the fan motor connect the negative battery terminal and in 1999 models and later remove the fresh air intake duct. Unplug the electrical connector of the fan motor, then lift the vehicle on jackstands and drain the cooling system (reusing the coolant if it is good). Using the pliers if the seal is stuck, loosen the hose clamp and detach the upper radiator hose. If any oil cooler lines or brackets inhibit the removal of the shroud, disconnect them. Also disconnect the wire harness from the shroud and remove the mounting bolts. Lift the fan motor and shroud out as one unit. Take out the screws that secure the fan's mount, then pull off the fan blade from the motor after taking off the retaining nut or clip, and finally, take out the motor from the shroud. Reinstallation is done in reverse order of removal. The rubber air shields around the shroud should be in position for cooling system operation. At last fill the cooling system.

How to check and replace the Engine Cooling Fan and Fan Clutch on Mitsubishi Montero?

To test the fan, first disconnect the battery's negative cable and rock the fan back and forth manually to see if there's excessive bearing play. With the engine cold, hand-turn the fan blades and they should rotate freely. Check for major fluid leaks from the clutch unit and, if found, replace the clutch unit. Following the engine start, you must turn off the ignition and again disconnect the negative terminal. Manually turning the fan should create some drag, and if it turns easily, then the fan clutch requires a replacement. To replace it, disconnect the negative battery cable, remove the fan shroud mounting screws, and detach it. Following that, remove the assembly (along with the shroud, if you ensure) from the engine compartment after taking off the bolts or nuts attaching the fan and clutch assembly to the water pump hub. Look at the fan blades for any damage or imperfections and replace if required. When unbolting the fan from the clutch, store the fan clutch raditor side down, with a fan facing down over it. The reverse process of removal is performed during installation by tightening the fan and clutch mounting nuts or bolts evenly and securely.

Genuine Mitsubishi Engine Cooling Fan

Radiator Fan

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

26 Engine Cooling Fans found

View related parts
Mitsubishi Fan Blade, Driver Side Part Number: 1355A095
$51.00 MSRP: $70.83
You Save: $19.83 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Dual Radiator & Condenser Fan Assembly, Left-Hand, D=340, Cooling Fan Assembly
- Position: Driver Side
Fits the following Mitsubishi Models:
- Lancer | 2008-2017 | DE, ES, ES Sportback, GT, GT Sportback, GTS, GTS Sportback, Ralliart, Ralliart Sportback, SE, SEL | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
- Outlander Sport | 2015-2023, 2011-2013 | BE, ES, GT, GT Special Edition, LE, S, SE, SE Special Edition, SEL, SP | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
Mitsubishi Fan Blade Part Number: MR281613
$52.08 MSRP: $72.33
You Save: $20.25 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fan, Cooling; Cooling Fan Assembly; Engine Cooling Fan; Radiator Fan
Fits the following Mitsubishi Models:
- Lancer | 2003-2006 | Evolution, Evolution MR, Evolution RS, Evolution SE | 4 Cyl 2.0 L GAS
View related parts
Mitsubishi Fan Blade, Driver Side Part Number: 1355A132
$52.33 MSRP: $72.68
You Save: $20.35 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Dual Radiator & Condenser Cooling Fan Assembly; Left-Hand Engine Cooling Fan
- Position: Driver Side
Fits the following Mitsubishi Models:
- Outlander | 2008-2013 | ES, GT, SE, XLS | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS
View related parts
Mitsubishi Fan Blade, Driver Side Part Number: 1355A103
$57.71 MSRP: $80.16
You Save: $22.45 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Dual Radiator & Condenser Cooling Fan Assembly; Left-Hand; Engine Radiator Fan
- Position: Driver Side
Fits the following Mitsubishi Models:
- Lancer | 2008-2015 | Evolution Final Edition, Evolution GSR, Evolution MR, Evolution MR Touring, Evolution SE, Ralliart, Ralliart Sportback, SE | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
- Outlander | 2007-2009 | ES, LS, XLS | 6 Cyl 3.0 L GAS
View related parts

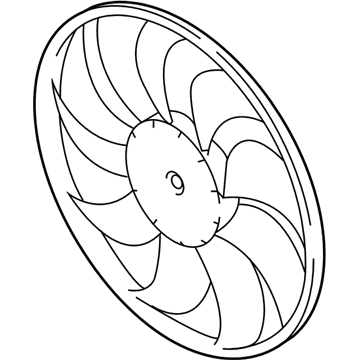

Mitsubishi Fan Blade, Driver Side Part Number: 1355A271
$67.63 MSRP: $93.93
You Save: $26.30 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fan, Cooling, Left-Hand; Cooling Fan Assembly; Engine Cooling Fan; Radiator Fan
- Position: Driver Side
Fits the following Mitsubishi Models:
- Eclipse Cross | 2022-2025, 2018-2020 | Black Edition, ES, LE, Ralliart, SE, SE Special Edition, SEL, SEL Special Edition, SEL Touring, SP | 4 Cyl 1.5 L GAS
View related parts
Mitsubishi Fan Blade, Passenger Side Part Number: 1355A266
$81.88 MSRP: $113.72
You Save: $31.84 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Dual Radiator & Condenser Cooling Fan Assembly; Right-Hand; Engine Cooling Fan
- Position: Passenger Side
Fits the following Mitsubishi Models:
- Eclipse Cross | 2022-2025, 2018-2020 | Black Edition, ES, LE, Ralliart, SE, SE Special Edition, SEL, SEL Special Edition, SEL Touring, SP | 4 Cyl 1.5 L GAS
- Outlander | 2014-2020 | ES, GT, LE, SE, SEL, SP | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS
- Outlander PHEV | 2018-2022 | GT, LE, SEL | 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV), 4 Cyl 2.4 L PLUG-IN HYBRID EV-GAS (PHEV)
- Outlander Sport | 2023-2025 | ES, GT, LE, Ralliart, S, SE, SEL, Trail Edition | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View More
View related parts

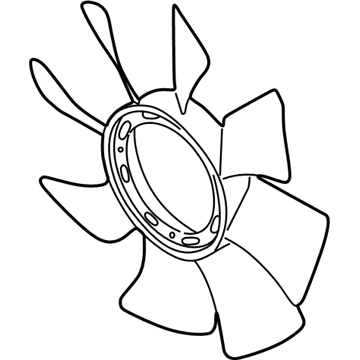

Mitsubishi Fan Blade Part Number: MD334659
$84.89 MSRP: $117.90
You Save: $33.01 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fan, Cooling; Cooling Fan Assembly; Engine Cooling Fan; Radiator Fan; Fan
Fits the following Mitsubishi Models:
- Montero | 1997-2000 | Base, LS, SR | 6 Cyl 3.5 L GAS
- Montero Sport | 1997-2004 | ES, LS, Limited, XLS, XS | 6 Cyl 3.0 L GAS, 6 Cyl 3.5 L GAS
View related parts

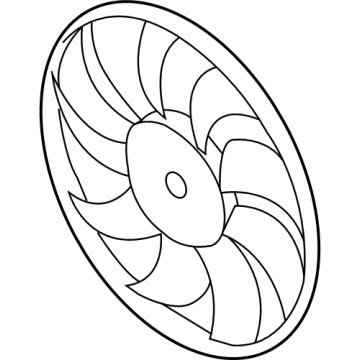

Mitsubishi Fan Blade, Driver Side Part Number: 1355A264
$85.72 MSRP: $119.05
You Save: $33.33 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Dual Radiator & Condenser Cooling Fan Assembly; Left-Hand; Engine Cooling Fan
- Position: Driver Side
Fits the following Mitsubishi Models:
- Outlander | 2014-2020 | ES, GT, LE, SE, SEL, SP | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS
- Outlander PHEV | 2018-2022 | GT, LE, SEL | 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV), 4 Cyl 2.4 L PLUG-IN HYBRID EV-GAS (PHEV)
- Outlander Sport | 2023-2025 | ES, GT, LE, Ralliart, S, SE, SEL, Trail Edition | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View More
View related parts

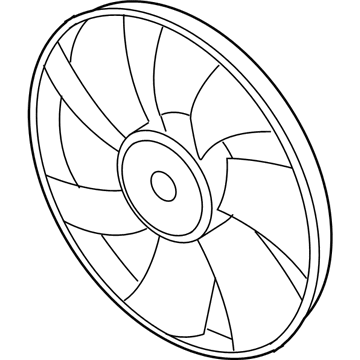

Mitsubishi Fan Blade Part Number: 1355A280
$90.67 MSRP: $125.93
You Save: $35.26 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fan, Cooling; Engine Cooling Fan Assembly; Cooling Fan Assembly; Engine Cooling Fan; Radiator Fan; Fan
Fits the following Mitsubishi Models:
- Mirage | 2017-2024, 2014-2015 | BE, Black Edition, Carbonite Edition, DE, ES, GT, LE, RF, SE | 3 Cyl 1.2 L GAS
- Mirage G4 | 2017-2024 | BE, Carbonite Edition, ES, LE, RF, SE | 3 Cyl 1.2 L GAS
View related parts
Mitsubishi Fan Blade Part Number: MD050475
$110.12 MSRP: $152.96
You Save: $42.84 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fan, Cooling; Cooling Fan Assembly; Engine Cooling Fan; Radiator Fan; Fan; Blade
Fits the following Mitsubishi Models:
- Mighty Max | 1990-1994, 1984-1985 | Base, SP, SPX | 4 Cyl 2.3 L DIESEL, 6 Cyl 3.0 L GAS
- Montero | 1989-1996 | Base, LS, RS, SP, SR, Sport | 6 Cyl 3.0 L GAS, 6 Cyl 3.5 L GAS
View related parts
Mitsubishi Fan Blade Part Number: MR464708
$45.94 MSRP: $63.80
You Save: $17.86 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Dual Radiator And Condenser Fan Assembly, Engine Cooling Fan Assembly, A/C Condenser Fan Assembly, Radiator Fan
Fits the following Mitsubishi Models:
- Lancer | 2002-2015 | ES, Evolution Final Edition, Evolution GSR, Evolution MR, Evolution MR Touring, Evolution SE, LS, OZ Rally, Ralliart, Ralliart Sportback, SE, Sportback, Sportback Ralliart | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
- Outlander | 2003-2009 | ES, LS, Limited, SE, XLS | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS
View related parts
Mitsubishi Fan Blade, Passenger Side Part Number: MR312899
$47.86 MSRP: $66.46
You Save: $18.60 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Dual Radiator And Condenser Fan Assembly; Right-Hand Cooling Fan; Engine Cooling Fan; Radiator Fan Assembly
- Position: Passenger Side
Fits the following Mitsubishi Models:
- Lancer | 2002-2017 | DE, ES, ES Sportback, GT, GT Sportback, GTS, GTS Sportback, LS, OZ Rally, Ralliart, Ralliart Sportback, SE, SEL, Sportback, Sportback Ralliart | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
- Outlander | 2008-2013, 2003-2006 | ES, GT, LS, Limited, SE, XLS | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS
- Outlander Sport | 2015-2023, 2011-2013 | BE, ES, GT, GT Special Edition, LE, S, SE, SE Special Edition, SEL, SP | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View More
View related parts
Mitsubishi Fan Blade Part Number: MR568928
$55.38 MSRP: $76.91
You Save: $21.53 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fan, Air Conditioner Condenser; Cooling Fan Assembly; Engine Cooling Fan; Radiator Fan
Fits the following Mitsubishi Models:
- Lancer | 2004-2006 | Ralliart, Sportback, Sportback Ralliart | 4 Cyl 2.4 L GAS
View related parts
Mitsubishi Fan Blade Part Number: MD356866
$79.67 MSRP: $110.64
You Save: $30.97 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fan, Cooling; Cooling Fan Assembly; Engine Cooling Fan; Radiator Fan; Fan
Fits the following Mitsubishi Models:
- Montero | 2001-2006 | Limited, XLS | 6 Cyl 3.5 L GAS, 6 Cyl 3.8 L GAS
View related parts

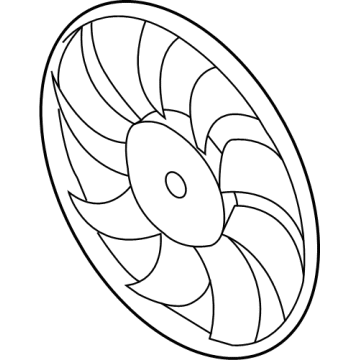

Mitsubishi Fan Blade, Driver Side Part Number: 1355A607
$94.36 MSRP: $131.04
You Save: $36.68 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fan, Cooling, Left-Hand; Cooling Fan Assembly; Engine Cooling Fan; Radiator Fan
- Position: Driver Side
Fits the following Mitsubishi Models:
- Outlander | 2022-2025 | Black Edition, ES, SE, SE Launch Edition, SEL, SEL Launch Edition | 4 Cyl 2.5 L GAS
View related parts

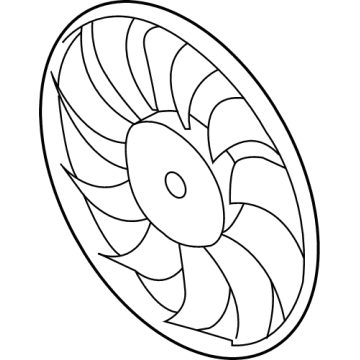

Mitsubishi Fan Blade, Passenger Side Part Number: 1355A606
$94.36 MSRP: $131.04
You Save: $36.68 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fan, Cooling, Right-Hand; Cooling Fan Assembly; Engine Cooling Fan; Radiator Fan
- Position: Passenger Side
Fits the following Mitsubishi Models:
- Outlander | 2022-2025 | Black Edition, ES, SE, SE Launch Edition, SEL, SEL Launch Edition | 4 Cyl 2.5 L GAS
View related parts
Mitsubishi Fan Blade Part Number: 1355A303
$94.99 MSRP: $131.92
You Save: $36.93 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Dual Radiator & Condenser Fan Assembly; Engine Cooling Fan Assembly; Radiator Fan; Fan
Fits the following Mitsubishi Models:
- Mirage | 2014-2015 | DE, ES, RF | 3 Cyl 1.2 L GAS
View related parts
Mitsubishi Fan Blade, Driver Side Part Number: MR312178
$17.14 MSRP: $22.32
You Save: $5.18 (24%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Dual Radiator And Condenser Fan Assembly; Engine Cooling Fan Assembly; Radiator Fan; Cooling Fan Assembly
- Position: Driver Side
Fits the following Mitsubishi Models:
- Galant | 1999-2012 | DE, ES, FE, GTZ, LS, Ralliart, SE, Sport Edition, Sport V6 | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.8 L GAS
View related parts
Mitsubishi Fan Blade, Driver Side Part Number: MR993006
$18.53 MSRP: $24.14
You Save: $5.61 (24%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Dual Radiator And Condenser Fan Assembly; Cooling Fan Assembly; Engine Cooling Fan; Radiator Fan; Left-Hand
- Position: Driver Side
Fits the following Mitsubishi Models:
- Endeavor | 2010-2011, 2004-2008 | LS, Limited, SE, XLS | 6 Cyl 3.8 L GAS
View related parts
Mitsubishi Fan Blade Part Number: 1355A001
Product Specifications
- Other Name: Fan, Cooling; Cooling Fan Assembly; Engine Cooling Fan; Radiator Fan
Fits the following Mitsubishi Models:
- Galant | 2004-2009 | GTS, LS, Ralliart, Sport V6 | 6 Cyl 3.8 L GAS

| Page 1 of 2 |Next >

1-20 of 26 Results

Mitsubishi Engine Cooling Fan

Mitsubishi Engine Cooling Fan helps in preventing the engine from overheating with use of air by drawing air over the radiator. The brand also values dependability and practicality throughout its entire brand, as well as smart technology that makes driving simple and safe. Dating back to 1870 when it first shipped out, Mitsubishi has a reputation for combining the optimal of efficiency and confident control, set to further enhance its impact with new vehicles using MIVEC powertrains and Super All Wheel Control. Options for plug-in hybrid electric vehicles such as the Outlander highlight a future-focused approach to energy use and smartphone link capabilities, while cruise control emphasizes driver convenience and both appeal to families and younger drivers. Mitsubishi does not just stop at technology advanced only a few years back but is researching further enhancements like fuel cell power, the recent safety sensors and more. It wants to add value to a simple vehicle, not complicate its operation. Returning to the cooling system, the Engine Cooling Fan is located just after the mesh core of the radiator. The fan's blades and shroud form a tunnel which directs fresh air across the hot fins so the coolant can shed heat before looping back to the engine. Versions with electrical drive respond immediately to temperature signals and shut off when natural airflow at higher speeds does the job, saving energy and reducing noise. Products of this company are equipped with Engine Cooling Fan that hold each Mitsubishi, whether a compact hatchback or a larger crossover, within the optimum thermal envelope, resulting in smooth combustion, steady emissions and long component life.

Pick genuine OEM Engine Cooling Fan if you want superb performance and durability that lasts. Mitsubishi builds that using high-grade materials and official factory techniques to meet very strict standards. This means you get parts you can actually trust for your daily drive. Finding the right parts is simple in the massive stock of genuine inventory. You can stop guessing if a part will fit or hold up. You will love the low prices, dependable service and the real manufacturer's warranty on Mitsubishi Engine Cooling Fan. Order today and the store will ship your brand-new items to your door as fast as possible.

Mitsubishi Engine Cooling Fan Parts Questions & Experts Answers

Fan Blade
MR233814
Q: What should you check for before diagnosing an electrical circuit problem in Engine Cooling Fan systems on Mitsubishi Galant?
A:
Always check for blown fuses before a circuit diagnostic procedure. The models from 1994 to 1998 feature both high and low-speed cooling fan relays. However, from 1999 onwards, there is only one cooling fan relay that the PCM controls. Condensers mounted alongside the engine cooling fan for 1994 to 1998 models and 3.0L V6 models with A/C. From 1999 onward, 2.4L SOHC models with AIC controller have single cooling fan and module. If the fan motor does not operate, replace it. Unplug the fan motor electrical connector if the engine overheats, and the cooling fan will not operate, connect the fan motor electrical connector direct to battery using fused jumper wires. In the case of air conditioned models, also check the condenser fan motor if the radiator fan motor checks out. If the motor for the radiator fan is functional yet doesn't turn on as the engine heats up, the fan relay has likely failed. The best way to check the control circuits is at a repair shop. Find the fan relays in the engine compartment fuse/relay box and carry out a relay test. If the relay is working properly, have a look at the wiring and any connections to the fan motor. If everything appears to be OK, then the fault lies with the engine coolant temperature sensor or the PCM. However, this will require a diagnosis. In order to replace the fan motor connect the negative battery terminal and in 1999 models and later remove the fresh air intake duct. Unplug the electrical connector of the fan motor, then lift the vehicle on jackstands and drain the cooling system (reusing the coolant if it is good). Using the pliers if the seal is stuck, loosen the hose clamp and detach the upper radiator hose. If any oil cooler lines or brackets inhibit the removal of the shroud, disconnect them. Also disconnect the wire harness from the shroud and remove the mounting bolts. Lift the fan motor and shroud out as one unit. Take out the screws that secure the fan's mount, then pull off the fan blade from the motor after taking off the retaining nut or clip, and finally, take out the motor from the shroud. Reinstallation is done in reverse order of removal. The rubber air shields around the shroud should be in position for cooling system operation. At last fill the cooling system.
Fan Blade
MD050475
Q: How to check and replace the Engine Cooling Fan and Fan Clutch on Mitsubishi Montero?
A:
To test the fan, first disconnect the battery's negative cable and rock the fan back and forth manually to see if there's excessive bearing play. With the engine cold, hand-turn the fan blades and they should rotate freely. Check for major fluid leaks from the clutch unit and, if found, replace the clutch unit. Following the engine start, you must turn off the ignition and again disconnect the negative terminal. Manually turning the fan should create some drag, and if it turns easily, then the fan clutch requires a replacement. To replace it, disconnect the negative battery cable, remove the fan shroud mounting screws, and detach it. Following that, remove the assembly (along with the shroud, if you ensure) from the engine compartment after taking off the bolts or nuts attaching the fan and clutch assembly to the water pump hub. Look at the fan blades for any damage or imperfections and replace if required. When unbolting the fan from the clutch, store the fan clutch raditor side down, with a fan facing down over it. The reverse process of removal is performed during installation by tightening the fan and clutch mounting nuts or bolts evenly and securely.
