How to remove and reinstall an oil pan in the four-cylinder engine on Mitsubishi Galant?

In order to take out the oil pan, you have to, first, unscrew the cable off the neg battery terminal, and then place the vehicle at an elevated position and make sure you have jackstands in place. Empty the engine oil and take out the front exhaust pipe. The next step entails removing the flywheel/driveplate inspection cover, then the mounting bolts to get the oil pan off of the vehicle, with a criss-cross pattern to loosen and remove the bolts. When pan is stuck, tap the pan lightly with a soft face hammer or a piece of wood to prevent any harm to the gasket surface. Then take out the oil pump pick-up tube and screen assembly cleaning them both thoroughly before reassembling and replace with a new seal. Wipe off oil pan and sealing surfaces on the block and pan, remove all old gasket material, check distortion, straightening or replacing as necessary. To install, place a bead of RTV sealant 1/8 inch at the joint of the cylinder block-to-oil pump assembly and replace the oil pan gasket. Place the oil pan, and screw in the bolts on a finger tight, then tighten them side to side with the center to the required tightness. Lastly, replace crankcase with the appropriate oil, start the engine to ensure there are no leakages and also perform road test to ascertain that there are no leakages.

How to remove and install the oil pan in the V6 engine on Mitsubishi Galant?

To remove the oil pan, disconnect the cable from the negative battery terminal. Then raise the vehicle and securely support it on jackstands. Take away accessory drivebelt splash shield and drain the oil. Remove dipstick tube and starter motor, followed by the engine-to-transaxle support brackets. Next remove the flywheel/driveplate inspection cover, then the front exhaust pipe/catalytic converter assembly. Take out the lower oil pan mounting bolts and if the pan does not come free, tap it with the soft-face hammer or wood block. After that, remove the top oil pan mounting bolts and safely disconnect the oil pan from the engine block without damaging the gasket surfaces. Take the oil pan out of the vehicle, and remove oil pump pick-up tube and screen assembly. Use a scraper to remove old gasket material from all gasket sealing surfaces and check for distortion; straighten or replace as necessary. Using a rag dampened with lacquer thinner or acetone, wipe the gasket surfaces after cleaning. For installation, place a bead of RTV sealant of 1/8 on the oil pan sealing surface and a light coating on the underside of the oil pan bolt heads. Set the oil pump pick-up tube in place and torque the bolts to specification. Mount and bolt the upper oil pan on the block, tightening it in a sequence per the specified torque setting. Afterwards, lay the lower oil pan against the upper oil pan and tighten the bolts in order. Finally, lower the vehicle, add engine oil to the crankcase, run the engine to check for leaks, and road test for leaks.

Genuine Mitsubishi Galant Oil Pan

Oil Drain Pan

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

9 Oil Pans found

View related parts
Mitsubishi Galant Oil Pan Part Number: MD350318
$270.10 MSRP: $381.50
You Save: $111.40 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Oil Pan, Engine, Upper
- Warranty: This genuine part is guaranteed by Mitsubishi's factory warranty.
Fits the following Vehicles:
- 1999-2003 Mitsubishi Galant | DE, ES, GTZ, LS | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS
View related parts
Mitsubishi Galant Oil Pan Part Number: 1200A008
$526.39 MSRP: $743.48
You Save: $217.09 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Oil Pan, Engine, Upper
- Warranty: This genuine part is guaranteed by Mitsubishi's factory warranty.
Fits the following Vehicles:
- 2004-2009 Mitsubishi Galant | GTS, LS, Ralliart, Sport V6 | 6 Cyl 3.8 L GAS
View related parts
Mitsubishi Galant Baffle Plate Part Number: 1200A274
$58.19 MSRP: $80.82
You Save: $22.63 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Plate, Engine Oil Pan Baffle; Oil Pan Baffle; Oil Pan
- Warranty: This genuine part is guaranteed by Mitsubishi's factory warranty.
Fits the following Vehicles:
- 2008-2009 Mitsubishi Galant | Ralliart | 6 Cyl 3.8 L GAS
View related parts
Mitsubishi Galant Oil Pan Part Number: MR994049
$63.92 MSRP: $88.79
You Save: $24.87 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Oil Pan, Engine, Lower; Engine Oil Pan; Lower Oil Pan
- Warranty: This genuine part is guaranteed by Mitsubishi's factory warranty.
Fits the following Vehicles:
- 2004-2009 Mitsubishi Galant | GTS, LS, Ralliart, Sport V6 | 6 Cyl 3.8 L GAS
View related parts
Mitsubishi Galant Oil Pan Part Number: MD332039
$192.68 MSRP: $261.08
You Save: $68.40 (27%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Oil Pan, Engine
- Warranty: This genuine part is guaranteed by Mitsubishi's factory warranty.
Fits the following Vehicles:
- 1993-1998 Mitsubishi Galant | DE, ES, GS, LS, S | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
Mitsubishi Galant Oil Pan Part Number: MN149374
$236.50 MSRP: $320.46
You Save: $83.96 (27%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Oil Pan, Engine; Engine Oil Pan
- Warranty: This genuine part is guaranteed by Mitsubishi's factory warranty.
Fits the following Vehicles:
- 2004-2012 Mitsubishi Galant | DE, ES, FE, SE, Sport Edition | 4 Cyl 2.4 L GAS
View related parts
Mitsubishi Galant Dipstick O-Ring Part Number: MD317089
$1.65 MSRP: $2.15
You Save: $0.50 (24%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: O-Ring, Engine Oil Filler; Oil Pan; Guide Tube O-Ring; Oil Tube O-Ring; Dipstick Seal; Guide O-Ring
- Warranty: This genuine part is guaranteed by Mitsubishi's factory warranty.
Fits the following Vehicles:
- 2008-2012 Mitsubishi Galant | ES, FE, Ralliart, SE, Sport Edition, Sport V6 | 4 Cyl 2.4 L GAS, 6 Cyl 3.8 L GAS
View related parts
Mitsubishi Galant Oil Pan Part Number: MD320639
$32.25 MSRP: $42.32
You Save: $10.07 (24%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Oil Pan, Engine, Lower
- Warranty: This genuine part is guaranteed by Mitsubishi's factory warranty.
Fits the following Vehicles:
- 1999-2003 Mitsubishi Galant | DE, ES, GTZ, LS | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS
View related parts

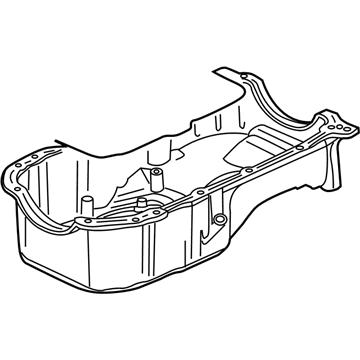

Mitsubishi Galant Oil Pan Part Number: 1200A042
$674.81 MSRP: $879.80
You Save: $204.99 (24%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Oil Pan, Engine, Upper; Upper Oil Pan
- Warranty: This genuine part is guaranteed by Mitsubishi's factory warranty.
Fits the following Vehicles:
- 2009, 2007 Mitsubishi Galant | Ralliart | 6 Cyl 3.8 L GAS

Mitsubishi Galant Oil Pan

The Mitsubishi Galant Oil Pan acts as the main reservoir for engine lubricant in the wet sump. Situated beneath the engine, it acts as a reservoir to collect and hold oil so that it may circulate as and when needed. The Oil Pan in the Mitsubishi Galant is located directly underneath the crankcase. The oil created by the engine is collected in a basin that doesn't allow for oil to spill out, even when moving or idling. A component in the form of an Oil Pan, which is shaped like a shallow metal bowl with flanged edges that bolt to the engine block, is located below the engine. A drain opening at a low point allows old oil to be let out during changes. Inside the machine, the stored oil is prepared for the single pump that pushes it through the engine's passages. After completing its task, the lubricant returns to the pan through the force of gravity so it may be applied again. Due to the wet sump design utilized in the Mitsubishi Galant rather than a dry sump arrangement, this basin continuously has a role for cooling and lubrication stability. A leak-proof pan gasket fits between the engine block and Oil Pan. Physical walls protect oil from road debris. Due to any kind of breach or deformation, the volume of oil would come down and there would be a decrease in lubrication efficiency. Therefore, it is designed to be resistant to vibration and impact caused by daily driving. The unit features a drain plug on the bottom which allows for easy draining of fluids and sealing it shut after draining. In all, the Mitsubishi Galant Oil Pan is a simple component, yet it is fundamentally important for the smooth functioning of an engine.

OEM Oil Pan can boast superior quality and long-term durability. Each part meets strict factory specs and passes careful checks in production. So you'll get Oil Pan with long-lasting strength and an exact fit. If you need OEM Mitsubishi Galant Oil Pan, the online store is the ideal place. The store carry a wide range of genuine Mitsubishi Galant parts at the highly competitive prices. You'll enjoy a simple and no-hassle shopping experience. You'll get unbeatable prices and fast delivery service. You'll get the manufacturer's warranty and a straightforward return policy. Shop with confidence and keep your car in top condition.

Mitsubishi Galant Oil Pan Parts Questions & Experts Answers

Oil Pan
MD320639
Q: How to remove and reinstall an oil pan in the four-cylinder engine on Mitsubishi Galant?
A:
In order to take out the oil pan, you have to, first, unscrew the cable off the neg battery terminal, and then place the vehicle at an elevated position and make sure you have jackstands in place. Empty the engine oil and take out the front exhaust pipe. The next step entails removing the flywheel/driveplate inspection cover, then the mounting bolts to get the oil pan off of the vehicle, with a criss-cross pattern to loosen and remove the bolts. When pan is stuck, tap the pan lightly with a soft face hammer or a piece of wood to prevent any harm to the gasket surface. Then take out the oil pump pick-up tube and screen assembly cleaning them both thoroughly before reassembling and replace with a new seal. Wipe off oil pan and sealing surfaces on the block and pan, remove all old gasket material, check distortion, straightening or replacing as necessary. To install, place a bead of RTV sealant 1/8 inch at the joint of the cylinder block-to-oil pump assembly and replace the oil pan gasket. Place the oil pan, and screw in the bolts on a finger tight, then tighten them side to side with the center to the required tightness. Lastly, replace crankcase with the appropriate oil, start the engine to ensure there are no leakages and also perform road test to ascertain that there are no leakages.
Oil Pan
MD332039
Q: How to remove and install the oil pan in the V6 engine on Mitsubishi Galant?
A:
To remove the oil pan, disconnect the cable from the negative battery terminal. Then raise the vehicle and securely support it on jackstands. Take away accessory drivebelt splash shield and drain the oil. Remove dipstick tube and starter motor, followed by the engine-to-transaxle support brackets. Next remove the flywheel/driveplate inspection cover, then the front exhaust pipe/catalytic converter assembly. Take out the lower oil pan mounting bolts and if the pan does not come free, tap it with the soft-face hammer or wood block. After that, remove the top oil pan mounting bolts and safely disconnect the oil pan from the engine block without damaging the gasket surfaces. Take the oil pan out of the vehicle, and remove oil pump pick-up tube and screen assembly. Use a scraper to remove old gasket material from all gasket sealing surfaces and check for distortion; straighten or replace as necessary. Using a rag dampened with lacquer thinner or acetone, wipe the gasket surfaces after cleaning. For installation, place a bead of RTV sealant of 1/8 on the oil pan sealing surface and a light coating on the underside of the oil pan bolt heads. Set the oil pump pick-up tube in place and torque the bolts to specification. Mount and bolt the upper oil pan on the block, tightening it in a sequence per the specified torque setting. Afterwards, lay the lower oil pan against the upper oil pan and tighten the bolts in order. Finally, lower the vehicle, add engine oil to the crankcase, run the engine to check for leaks, and road test for leaks.
