Question 1

How to remove and install front Car Mirror, Door Lock, Door Lock Cylinder, Exterior Door Handle, Interior Door Handle and Window Regulator on Mitsubishi Lancer?

Accepted Answer

To remove / install the interior handles, trim panel and sealing sheet on CE models, with the regulator handle engage the washer is pushed away. Then withdraw the handle retaining clip with a wire hook, and remove the handle and washer. For power windows, remove the retaining screw within the pull handle. Carefully prise the switch panel from the door trim using a cloth-covered screwdriver. Disconnect the wiring and withdraw the switch panel. On the passenger's side, it's not necessary to remove this. After that, take out the retaining screw in the pull handle cavity and pull out the pull handle, then take out the retaining screw from the inner handle trim and pull out the trim. With utmost care, remove the cover from the screw at the front of the door trim. Then undo the screw. Take note that for a sedan model, there's another screw at the back of the trim above the door lock. To remove the trim panel, grasp its lower outside edge and pull it away from the door to disengage the retaining clips. Next, lift the trim panel up and withdraw it. If working on the passenger's side of a model with power windows, disconnect power window switch wiring before removing trim panel. After removing the retaining screws, the pull handle bracket is withdrawn. After that, remove the retaining screws of the interior handle and carefully peel off the plastic sheet from the door by cutting the sealant. If required, feed the wiring connector through and then remove the sealing sheet from the door. Store it flat and with the sealant-side facing up. If necessary, release the clips that hold the control rods to the interior handle. Remove the handle. The process of installation is just the reverse of that of removal and entails ensuring that the sealing sheet is correctly positioned, the sealant remains in operable condition, replacing any damaged trim panel retaining clips, and tightening all screws securely. The CG and CH models start the same way: the switch panel and pull handle are removed. Next, the interior handle trim and the trim panel are removed. If the model is equipped with power windows, the power window switch wiring must be disconnected. The window glass removal entails positioning of the glass to expose the retaining screws, temporally installing the window regulator handle or connecting of power window switch wiring so the glass can be moved as required, loosening of screws retaining the glass to the regulator slide, tilting the glass up and by maneuvering it through the door opening. To install the window, one must follow the steps in reverse to ensure it is seated properly and operates properly before putting the sealing sheet and trim panel back on. To service each window regulator, remove the trim panel, sealing sheet, window glass, if applicable disconnect the wiring of power window motor, if applicable remove the retaining bolts and move out the regulator assembly from the door and lubricate the sliding surfaces before refitting. Removing the exterior handle and lock cylinder requires that the window (which we can assume is the window of a car) be raised. Subsequently, the trim panel must first be removed, control rods disconnected, and the handle and lock cylinder removed. With everything on the right place, the exterior handle and lock cylinder will operate properly. The door lock removal consists of disconnecting control rods and wiring;after removing retaining screws grease sliding parts before reinstalling. Mark the position of the lock striker, remove retaining screw, and reinstall an aligned position. To renew mirror glass, adjust mirror and disengage spring or clips if necessary, next remove mirror cover and the surrounding panel if applicable, disconnect power mirror wiring, remove retaining screws or nuts, finally reinstall and test mirror operation.

Question 2

How to remove and install the Door Lock, Door Lock Cylinder, Exterior Door Handle and Interior Door Handle on front door and cargo door on Mitsubishi Montero?

Accepted Answer

To remove and install a front door, the initial step involves removing the door trim panel as well as carefully and without tearing the plastic watershield. Remove the inside lever link clip from the door lock assembly and unfasten the screws that secure the interior handle assembly before lifting it out. After that, remove glass run channel and unsnapped the door lock rod from the door latch assembly. Uninstall the door latch assembly mounting screws and lift out that assembly. If needed, remove the two nuts securing the exterior handle and lift out that handle. Remove the door lock cylinder from the exterior of the door. During installation, be sure to grease the sliding surfaces of all levers and springs. To set the outside door handle freeplay, unclip the retaining clip from the actuating rod, and adjust the connector up or down as necessary. The procedure for the cargo door begins similarly with the door trim panel and plastic watershield removed next inside lever link clip unfastened and interior handle assembly screws undone. Detach the rod from the door lock assembly. Remove the mounting screws for the door lock assembly. If necessary, remove the two nuts for the exterior handle and lift the assembly out. Make use of pliers to squeeze the retaining clip so as to push the door lock cylinder through to the outside, from where it can be pulled out. Apply grease during installation to the sliding surfaces of all levers and springs. The freeplay of the outside door handle can be adjusted in a similar manner to the inside door handle.

Genuine Mitsubishi Interior Door Handle

53 Interior Door Handles found

Mitsubishi Handle, Inside, Passenger Side Black Part Number: 5716A478XA

Mitsubishi Handle, Inside, Driver Side Black Part Number: 5716A477XA

Mitsubishi Handle, Inside, Passenger Side Chrome Part Number: 5716A616XA

Mitsubishi Handle, Inside, Driver Side Chrome Part Number: 5716A615XA

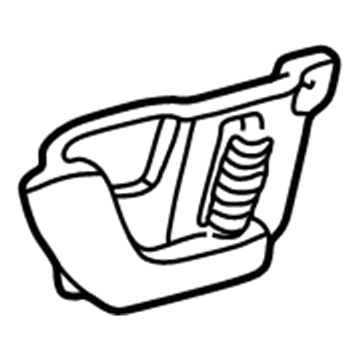

Mitsubishi Handle, Inside, Driver Side Part Number: 5716A237XA

Mitsubishi Handle, Inside, Passenger Side Part Number: 5716A236XA

Mitsubishi Handle, Inside, Passenger Side Beige Part Number: 5716A480YA

Mitsubishi Handle, Inside, Driver Side Beige Part Number: 5716A479YA

Mitsubishi Handle, Inside, Passenger Side Part Number: 5716A088XA

Mitsubishi Handle, Inside, Driver Side Part Number: 5716A235XA

Mitsubishi Handle, Inside, Driver Side Part Number: 5716A087XA

Mitsubishi Handle, Inside, Driver Side Part Number: 5716A479XB

Mitsubishi Handle, Inside, Passenger Side Part Number: 5716A480XB

Mitsubishi Handle, Inside, Driver Side Part Number: 80673A021P

Mitsubishi Handle, Inside, Passenger Side Part Number: 80672A021P

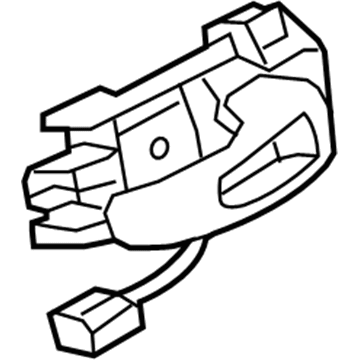

Mitsubishi Handle, Inside, Driver Side Part Number: 5716A481HA

Mitsubishi Handle, Inside, Passenger Side Black Part Number: MR987498XA

Mitsubishi Handle, Inside, Driver Side Black Part Number: MR987497XA

Mitsubishi Handle, Inside, Passenger Side Silver/Black Part Number: 5716A326HA

Mitsubishi Handle, Inside, Passenger Side Part Number: 5716A482HA
