Question 1

How to inspect and adjust drive belts, and what procedures are involved in renewing them on Mitsubishi Lancer?

Accepted Answer

When inspecting the drive belts for cracks or separation between the rubber and the fibre cords, look at the belt. Although cracks on the ribs are okay, if any adjacent ribs are missing a section greater than 13 mm they will require renewal. All drive belts must be adjusted to prevent slippage without overloading the bearings of the components. If the drive belt is slipping and you've already checked the tension, The belt is likely defective and must be removed and checked to see if the pulleys rotate freely. A running engine, after just 5 minutes, starts to progressively wear away at the belt that was previously grabbed. For all models except those fitted with the 2.4 litre engine, the air conditioning compressor and the power steering pump are driven from the same belt and the renewal or adjustment procedure is the same for all models. All 1.8 and 2.0 litre models have a separate tensioner from the power steering pump, while 1.5 litre models that do not have power steering have the tensioner mounted on the air conditioning bracket. Remove the retainers and splashguard in the driver side wheel arch. Subsequently, check the tension for the belt by applying a force of 98 Newtons. A new belt should deflect by 7-9 mm while a used one should deflect by 10-11 mm. Tighten the adjustment bolt in the clockwise direction until the tensioner touches the belt, and then tighten the pivot bolts and lock nut. To adjust, loosen tensioner locknut and turn the adjusting bolt to change tension. Finally, tighten locknut and pivot bolts securely. Once a new belt is fitted, run the engine for five minutes and check its tension again. For the alternator belt, the process is similar, as the alternator belt drives the water pump on 1.5 litre models, whilst on 1.8 and 2.0 litre models the timing belt does. Take off the splashguard. Check tension using the same force. Renew or adjust if necessary by loosening the locknut and pivot bolt on the alternator assembly. For the 2.4 litre engine, the drive belts should be inspected in the same way. If the indicator mark on the tensioner is not within the limit marks, replace the belt. In order to replace the splashguard, first remove the splashguard, then use the tensioner to loosen the belt. Next, check each pulley for proper operation before installing the new belt. Make sure the belt is fully seated on both pulleys before releasing the tensioner, then start the engine and shortly check the indicator mark on the tensioner. Reattach any parts you've removed to get to the drive.

Question 2

What is the importance of the accessory Drive Belt in engine operation and how should it be inspected and maintained on Mitsubishi Montero?

Accepted Answer

The patented accessory drivebelts are located at the front of the engine and drive the water pump, the alternator, the power steering pump and the air conditioning compressor. The condition and tension of the drivebelts should be checked regularly for correct engine operation and accessory operation. When the tension is too high, the bearing will be worn while on lower tension will cause slippage, noise and vibration leading to belt failure. Due to their composition and the high stress they are exposed to, drivebelts stretch and deteriorate after a certain point. As a result, they require periodic checks and adjustments. The number and type, routing and style of belts that can be seen on the vehicle depend on the engine, model year and the accessories that are installed. In some cases, ordinary V-belts are used. In others, V-ribbed belts are employed. Sergeants belts that drive all the accessory are also quite frequently used. With the engine off, open the hood and use a flashlight to check for separation, cracks, fraying, and glazing on the belts in the engine bay. To carry out tension checks, a straightedge is laid across the belt's longest free span to measure deflection which is to be within specified limits. To adjust a serpentine belt, turn the adjusting screw on the tension pulley. Other belts require loosening the locking and pivot bolts on the accessory. Once adjustments are made, check tension and tighten bolts. To replace belts, you should loosen the belt so it slips off the grooves of the pulleys. It may be advisable to replace all belts at the same time. You will need to mark which belt and which grove it came off.

Genuine Mitsubishi Drive Belt

53 Drive Belts found

Mitsubishi Serpentine Belt Part Number: 1340A052

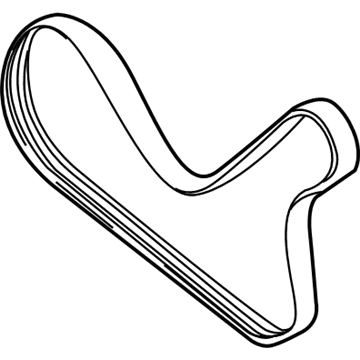

Mitsubishi Serpentine Belt Part Number: MZ690264

Mitsubishi Serpentine Belt Part Number: 1340A146

Mitsubishi Power Steering Belt Part Number: 4451A107

Mitsubishi Serpentine Belt Part Number: MN137520

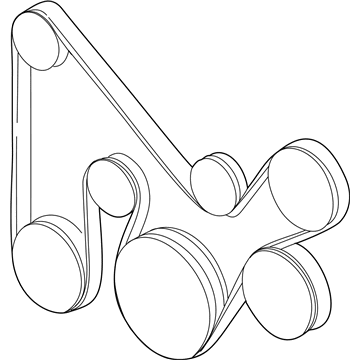

Mitsubishi Serpentine Belt Part Number: MZ690271

Mitsubishi Serpentine Belt Part Number: MN158795

Mitsubishi Serpentine Belt Part Number: 1340A123

Mitsubishi Serpentine Belt Part Number: 4451A114

Mitsubishi Serpentine Belt Part Number: 1340A150

Mitsubishi Serpentine Belt Part Number: MN176973

Mitsubishi Serpentine Belt Part Number: AX000018

Mitsubishi Serpentine Belt Part Number: 4451A123

Mitsubishi Serpentine Belt Part Number: 1340A132

Mitsubishi Serpentine Belt Part Number: MD373622

Mitsubishi Serpentine Belt Part Number: MZ690266

Mitsubishi Serpentine Belt Part Number: MN183866

Mitsubishi Serpentine Belt Part Number: 4451A115

Mitsubishi Serpentine Belt Part Number: MN183597

Mitsubishi Serpentine Belt Part Number: 1340A104
