How to remove and install the fuel tank on Mitsubishi Lancer?

Discharge the Fuel System Pressure. Disconnect the Negative Battery Terminal. Then you can Remove and Install the Fuel Tank. To remove the rear seat cushion, first find and pull the two retaining clips located at the front of the cushion. Then, lift and withdraw the cushion. Remove the floor access covers with a flat-blade screwdriver inserted in the cover grooves. Remove the wiring from both the fuel pump and the fuel gauge sender unit. Using jack stands or equivalent, raise and securely support rear of vehicle. Using a clean container, remove the drain plug from the fuel tank and drain the fuel. Fit a new sealing washer on the drain plug and tighten it. For the CG and CH models, undo the centre exhaust pipe's nuts and bolts that hold it to the catalytic converter and tailpipe, release the pipe from the mountings and discard the seating gaskets. Take out the bolt that secures the handbrake cable to the left side of the body and position the cable away from the fuel tank. Simply disconnect the ABS sensor wiring from either side of the fuel tank and move it out of the way. To disconnect the fuel supply hose from the tank, squeeze together the tangs on each side of the fuel supply hose fitting. Release the clamp and disconnect the return hose. These instructions will help you to loosen the clamp to disconnect the filler hose from the filler pipe. Similarly, you must release the clamp to disconnect the breather hose from the breather pipe. With assistance, support the fuel tank and remove the nuts that retain it to the vehicle body; lower and maneuver the fuel tank from the vehicle. To install, ensure the tank is clean, undamaged, and free from corrosion. With assistance, raise it into position, install and securely tighten the retaining nuts, and then install the filler and breather hoses, making sure the clamps are secure. Make sure to connect the fuel supply and return hoses and all the wiring.

Genuine Mitsubishi Fuel Tank

Gas Tank

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

23 Fuel Tanks found

View related parts
Mitsubishi Fuel Tank Part Number: 1700B572
$467.46 MSRP: $660.25
You Save: $192.79 (30%)
Ships in 1-2 Business Days
ADD TO CART
Fits the following Mitsubishi Models:
- Mirage G4 | 2017-2024 | BE, Carbonite Edition, ES, LE, RF, SE | 3 Cyl 1.2 L GAS
View related parts
Mitsubishi Fuel Tank Part Number: MN120083
$514.92 MSRP: $727.28
You Save: $212.36 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Filler Neck
Fits the following Mitsubishi Models:
- Lancer | 2004-2007 | ES, Evolution, Evolution MR, Evolution RS, Evolution SE, LS, OZ Rally, Ralliart, SE, Sportback, Sportback Ralliart | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
Mitsubishi Fuel Tank Part Number: 1700A891
$529.83 MSRP: $748.36
You Save: $218.53 (30%)
Ships in 1-2 Business Days
ADD TO CART
Fits the following Mitsubishi Models:
- Lancer | 2010-2017 | DE, ES, ES Sportback, Evolution GSR, Evolution MR, Evolution MR Touring, Evolution SE, GT, GT Sportback, Ralliart, Ralliart Sportback, SE, SEL | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
Mitsubishi Fuel Tank Part Number: 1700B177
$602.13 MSRP: $850.47
You Save: $248.34 (30%)
Ships in 1-2 Business Days
ADD TO CART
Fits the following Mitsubishi Models:
- Mirage | 2017-2024, 2014-2015 | BE, Black Edition, Carbonite Edition, DE, ES, GT, LE, RF, SE | 3 Cyl 1.2 L GAS
View related parts
Mitsubishi Fuel Tank Part Number: 1700B706
$611.77 MSRP: $864.08
You Save: $252.31 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fuel Tank Assembly
Fits the following Mitsubishi Models:
- Outlander Sport | 2018-2022 | BE, ES, GT, GT Special Edition, LE, S, SE, SE Special Edition, SEL, SP | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
Mitsubishi Fuel Tank Part Number: 1700A208
$632.42 MSRP: $893.26
You Save: $260.84 (30%)
Ships in 1-2 Business Days
ADD TO CART
Fits the following Mitsubishi Models:
- Lancer | 2008-2009 | Evolution GSR, Evolution MR, Ralliart | 4 Cyl 2.0 L GAS
View related parts
Mitsubishi Fuel Tank Part Number: 1700B712
$640.91 MSRP: $905.22
You Save: $264.31 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fuel Tank Assembly
Fits the following Mitsubishi Models:
- Outlander Sport | 2018-2025 | BE, ES, GT, GT Special Edition, LE, Ralliart, S, SE, SE Special Edition, SEL, SP, Trail Edition | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts

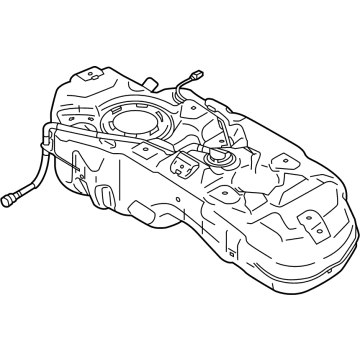

Mitsubishi Fuel Tank Part Number: 1700B910
$655.15 MSRP: $854.17
You Save: $199.02 (24%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fuel Tank Assembly
Fits the following Mitsubishi Models:
- Outlander | 2022-2025 | Black Edition, ES, SE, SE Launch Edition, SEL, SEL Launch Edition | 4 Cyl 2.5 L GAS
- Outlander Sport | 2021 | BE, ES, GT, LE, S, SE | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
Mitsubishi Fuel Tank Part Number: 1700B667
$655.75 MSRP: $854.96
You Save: $199.21 (24%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fuel Tank Assembly
Fits the following Mitsubishi Models:
- Eclipse Cross | 2022, 2018-2020 | ES, LE, SE, SE Special Edition, SEL, SEL Special Edition, SP | 4 Cyl 1.5 L GAS
- Outlander | 2018-2020 | ES, GT, LE, SE, SEL, SP | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS
View related parts

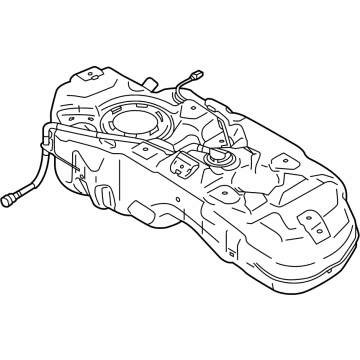

Mitsubishi Fuel Tank Part Number: 1700B917
$658.52 MSRP: $858.57
You Save: $200.05 (24%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fuel Tank Assembly
Fits the following Mitsubishi Models:
- Outlander | 2022-2025 | Black Edition, ES, SE, SE Launch Edition, SEL, SEL Launch Edition | 4 Cyl 2.5 L GAS
- Outlander Sport | 2021 | BE, ES, GT, LE, SE | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
Mitsubishi Fuel Tank Part Number: 1700A992
$680.16 MSRP: $886.79
You Save: $206.63 (24%)
Ships in 1-2 Business Days
ADD TO CART
Fits the following Mitsubishi Models:
- Lancer | 2008-2009 | DE, ES, GTS | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
Mitsubishi Fuel Tank Assembly Part Number: 1700B149
$684.57 MSRP: $892.52
You Save: $207.95 (24%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fuel Tank, 63L; Fuel Tank
Fits the following Mitsubishi Models:
- Outlander | 2014-2017 | ES, GT, SE, SEL | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS
- Outlander Sport | 2016-2018, 2013 | ES, GT, LE, SE, SEL | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
Mitsubishi Fuel Tank Part Number: 1700B668
$693.07 MSRP: $903.62
You Save: $210.55 (24%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fuel Tank Assembly
Fits the following Mitsubishi Models:
- Eclipse Cross | 2022-2025, 2018-2020 | Black Edition, ES, LE, Ralliart, SE, SE Special Edition, SEL, SEL Special Edition, SEL Touring, SP | 4 Cyl 1.5 L GAS
- Outlander | 2018-2020 | ES, GT, LE, SE, SEL, SP | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS
View related parts
Mitsubishi Fuel Tank Assembly Part Number: 1700B165
$719.12 MSRP: $937.57
You Save: $218.45 (24%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fuel Tank
Fits the following Mitsubishi Models:
- Outlander | 2007-2013 | ES, GT, LS, SE, XLS | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS
View related parts
Mitsubishi Fuel Tank Assembly Part Number: 1700B164
$723.88 MSRP: $943.78
You Save: $219.90 (24%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fuel Tank
Fits the following Mitsubishi Models:
- Outlander | 2007-2013 | ES, GT, LS, SE, XLS | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS
View related parts
Mitsubishi Fuel Tank Part Number: 1700A890
$730.72 MSRP: $952.69
You Save: $221.97 (24%)
Ships in 1-2 Business Days
ADD TO CART
Fits the following Mitsubishi Models:
- Lancer | 2010-2017 | DE, ES, ES Sportback, GT, GT Sportback, GTS, GTS Sportback, SE, SEL | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
Mitsubishi Fuel Tank Assembly Part Number: 1700B150
$740.32 MSRP: $965.22
You Save: $224.90 (24%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fuel Tank, 60L; Fuel Tank
Fits the following Mitsubishi Models:
- Outlander | 2014-2017 | ES, GT, SE, SEL | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS
- Outlander Sport | 2016-2018 | ES, GT, LE, SE, SEL | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
Mitsubishi Fuel Tank Assembly Part Number: 1700B140
$744.80 MSRP: $971.06
You Save: $226.26 (24%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fuel Tank
Fits the following Mitsubishi Models:
- Outlander Sport | 2011-2012 | ES, SE | 4 Cyl 2.0 L GAS
View related parts
Mitsubishi Fuel Tank Assembly Part Number: 1700B139
$744.80 MSRP: $971.06
You Save: $226.26 (24%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fuel Tank
Fits the following Mitsubishi Models:
- Outlander Sport | 2011-2012 | ES, SE | 4 Cyl 2.0 L GAS
View related parts
Mitsubishi Fuel Tank Part Number: MR342857
$850.17 MSRP: $1108.43
You Save: $258.26 (24%)
Ships in 1-2 Business Days
ADD TO CART
Fits the following Mitsubishi Models:
- Montero | 2002-2006 | Limited, XLS | 6 Cyl 3.5 L GAS, 6 Cyl 3.8 L GAS

| Page 1 of 2 |Next >

1-20 of 23 Results

Mitsubishi Fuel Tank

These Mitsubishi Fuel Tank would hold gasoline. They would contain gasoline vapors. They provide a reliable supply to the engine. Mitsubishi vehicles offer a fusion of rugged engineering, smart features and user friendly controls that makes everyday travel simple and enjoyable. The history of the brand dates back to shipbuilding and includes the first Model A. Today, it offers MIVEC engines with power levels at a range, Super All Wheel Control that grips loose roads and cruise control with smartphone link integration. Mitsubishi is currently conducting trials with a fuel cell drive and enhanced safety sensors while keeping costs reasonable to help families who want dependable performance in all conditions. The emphasis on creative innovation and reliable performance builds a strong reputation for compact car, SUV and hybrid models across global markets. Although the wider lineup impresses, the Fuel Tank itself makes a critical contribution to that reliability. The Fuel Tank, made of high density polyethylene or corrosion resistant steel, was designed to withstand rain, snow, road salt, debris, vibration and temperature changes under the vehicle. While taking sharp turns, the fuel's internal baffles keep the fuel close to the pickup. An electric pump pulls the fuel smoothly, and a gauge sender reports level so your trip is worry free. The sealed construction of the cars prevents vapor leaking, and with the help of the evaporative emission system, the entire Mitsubishi fleet runs clean and damage free to the environment.

Pick genuine OEM Fuel Tank if you want superb performance and durability that lasts. Mitsubishi builds that using high-grade materials and official factory techniques to meet very strict standards. This means you get parts you can actually trust for your daily drive. Finding the right parts is simple in the massive stock of genuine inventory. You can stop guessing if a part will fit or hold up. You will love the low prices, dependable service and the real manufacturer's warranty on Mitsubishi Fuel Tank. Order today and the store will ship your brand-new items to your door as fast as possible.

Mitsubishi Fuel Tank Parts Questions & Experts Answers

Fuel Tank
MN120083
Q: How to remove and install the fuel tank on Mitsubishi Lancer?
A:
Discharge the Fuel System Pressure. Disconnect the Negative Battery Terminal. Then you can Remove and Install the Fuel Tank. To remove the rear seat cushion, first find and pull the two retaining clips located at the front of the cushion. Then, lift and withdraw the cushion. Remove the floor access covers with a flat-blade screwdriver inserted in the cover grooves. Remove the wiring from both the fuel pump and the fuel gauge sender unit. Using jack stands or equivalent, raise and securely support rear of vehicle. Using a clean container, remove the drain plug from the fuel tank and drain the fuel. Fit a new sealing washer on the drain plug and tighten it. For the CG and CH models, undo the centre exhaust pipe's nuts and bolts that hold it to the catalytic converter and tailpipe, release the pipe from the mountings and discard the seating gaskets. Take out the bolt that secures the handbrake cable to the left side of the body and position the cable away from the fuel tank. Simply disconnect the ABS sensor wiring from either side of the fuel tank and move it out of the way. To disconnect the fuel supply hose from the tank, squeeze together the tangs on each side of the fuel supply hose fitting. Release the clamp and disconnect the return hose. These instructions will help you to loosen the clamp to disconnect the filler hose from the filler pipe. Similarly, you must release the clamp to disconnect the breather hose from the breather pipe. With assistance, support the fuel tank and remove the nuts that retain it to the vehicle body; lower and maneuver the fuel tank from the vehicle. To install, ensure the tank is clean, undamaged, and free from corrosion. With assistance, raise it into position, install and securely tighten the retaining nuts, and then install the filler and breather hoses, making sure the clamps are secure. Make sure to connect the fuel supply and return hoses and all the wiring.
